1969
The M7B moved its fuel into distinctive side tanks and carried the architecture of McLaren's first Grand Prix winner into the 1969 season.
Exhibit
Technical timeline
M7B · 1969

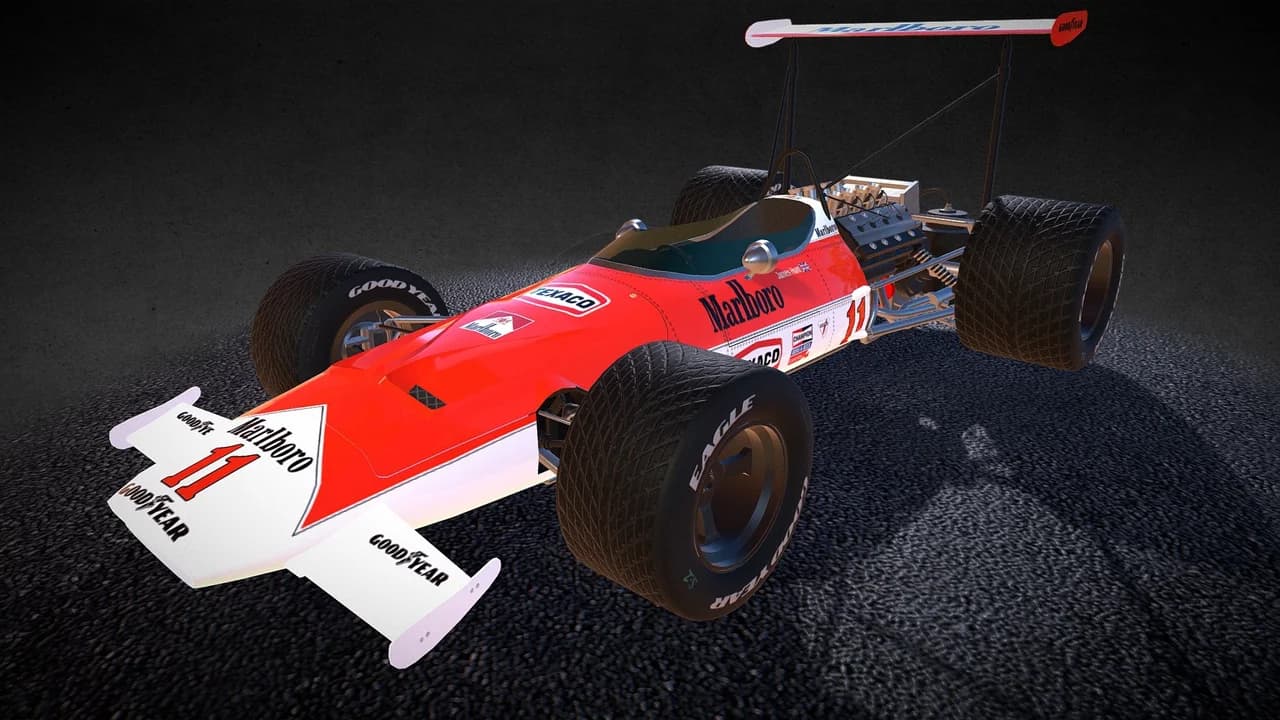

Interactive 3D model · McLaren M7B
Technical timeline
3D model preview
The viewer starts only on request to reduce data transfer and energy use.
Drag to rotate
Wheel or pinch to zoom
Full screen
Guided route
01
Robin Herd evolved the M7A by moving part of the fuel load into broad side pontoons. The solution lowered the centre of gravity and changed the car's proportions without abandoning the straightforward monocoque and Cosworth DFV package that had made McLaren competitive.
02
Denny Hulme brought the M7B onto the podium before the car passed to Colin Crabbe's private team. It remains a short but revealing chapter in the rapid experimentation that followed McLaren's first Formula 1 victory.
Archive provenance
McLaren M7B
Sources & credits
Model correspondence
Matching source
The source names the same car as this exhibit. The geometry is the creator's reconstruction, not an official scan.
This non-official historical visualization uses jdaniel_92's model under Sketchfab Editorial. Its geometry is the creator's reconstruction rather than an official scan; the displayed marks belong to their respective owners.
