2014
Rotate the car that defined the beginning of Formula 1's hybrid era and inspect the tightly packaged bodywork around its landmark power unit.
Exhibit
Technical timeline
W05 Hybrid · 2014

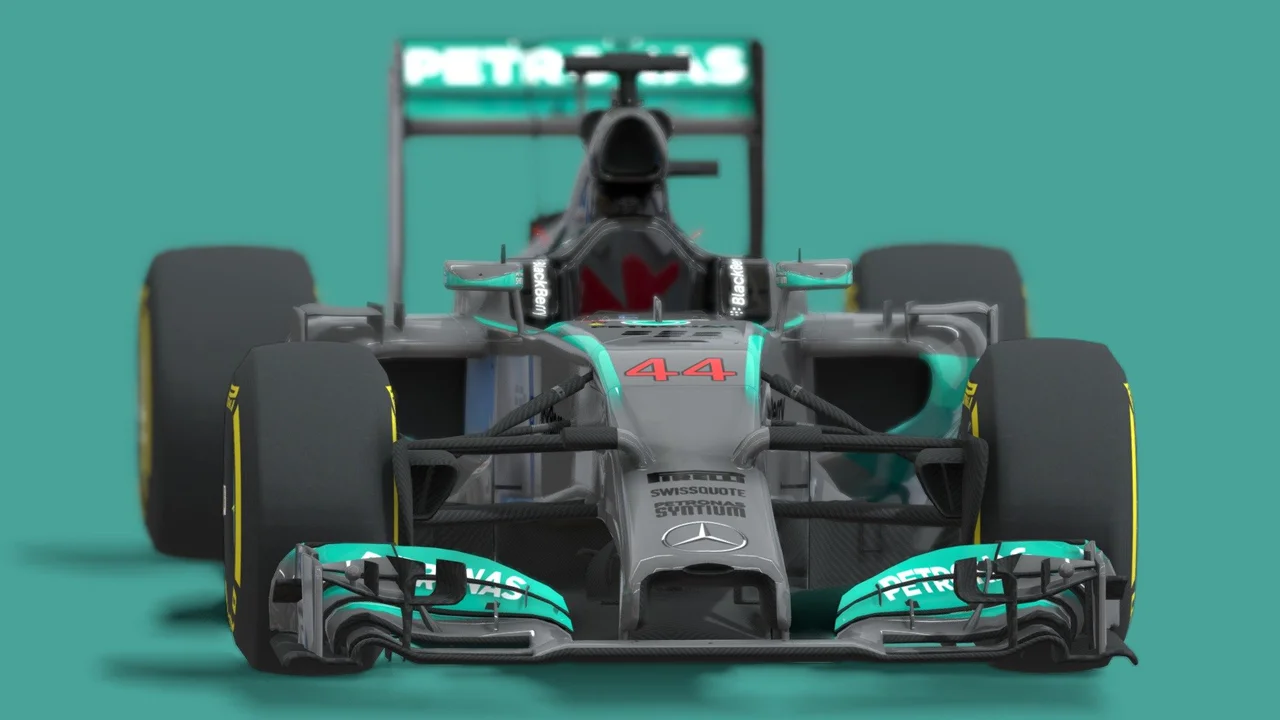

Interactive 3D model · Mercedes F1 W05 Hybrid
Technical timeline
3D model preview
The viewer starts only on request to reduce data transfer and energy use.
Drag to rotate
Wheel or pinch to zoom
Full screen
Guided route
01
Mercedes designed the chassis and PU106A power unit as one project. Separating the compressor from the turbine reduced heat around the intake, shortened the cooling layout and helped aerodynamic packaging. The W05 also paired strong energy recovery with a stable chassis, allowing Lewis Hamilton and Nico Rosberg to exploit its performance across very different circuits.
02
The W05 won 16 of 19 Grands Prix, secured 18 pole positions and put its drivers on the podium 31 times. Hamilton won his second Drivers' title after a season-long contest with Rosberg, while Mercedes claimed its first Constructors' Championship and opened a run that would define the era.
Archive provenance
Mercedes F1 W05 Hybrid
Sources & credits
Model correspondence
Matching source
The source names the same car as this exhibit. The geometry is the creator's reconstruction, not an official scan.
This non-official historical visualization uses Dave Love SketchFab's model under CC BY 4.0. It is not an official Mercedes scan. Mercedes, W05 and the displayed sponsor marks belong to their respective owners.
